Introduction to collaborative robots

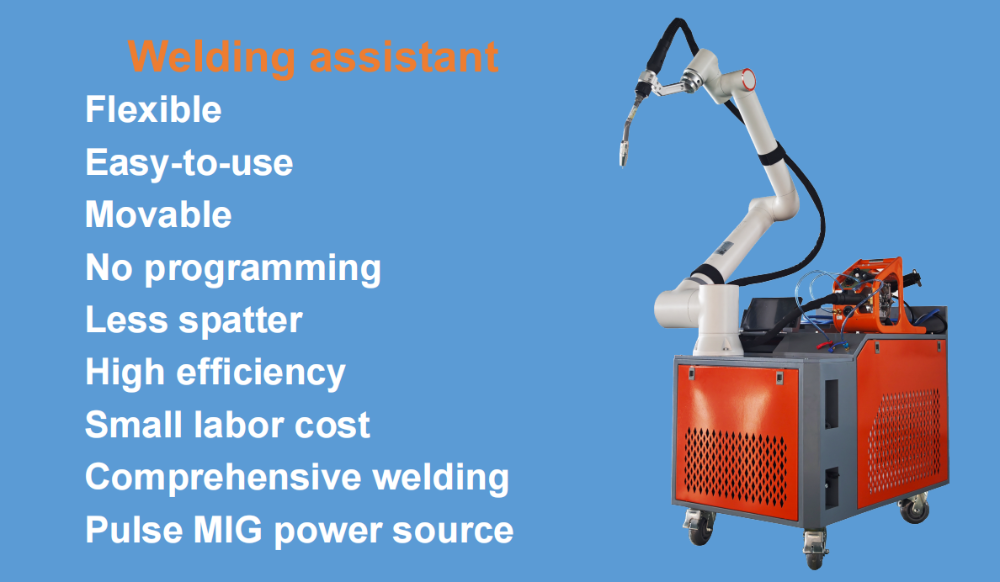

Collaborative robot
The collaborative robot is a welding equipment specially produced by our company for heavy industry. This machine can be used for linear welding, round welding, multi-stage process welding, etc. Compared with the traditional robotic arm, the collaborative robot is easy to operate and does not require complicated program settings. The setting can be completed by pulling the robotic arm to set the welding point according to the welding path. The Equipment equipped pulse MIG welding power source, and the communication response between the welding machine and the robotic arm is timely. The overall welding process is smooth, which reduces labor costs and improves work efficiency.

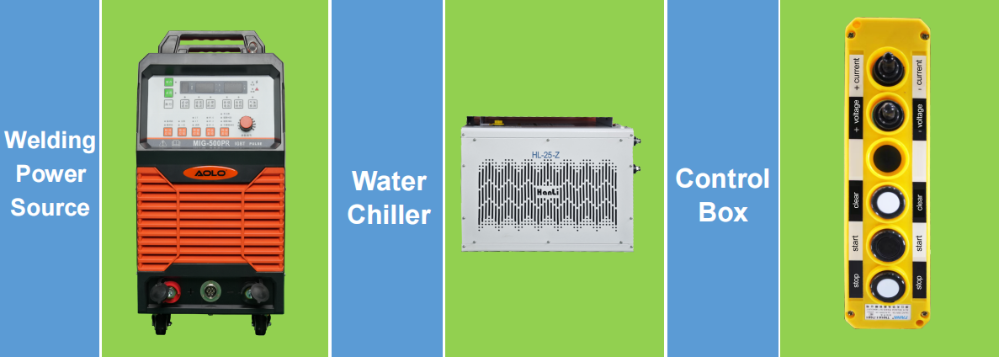

Robot configuration & Introduction
Software Introduction

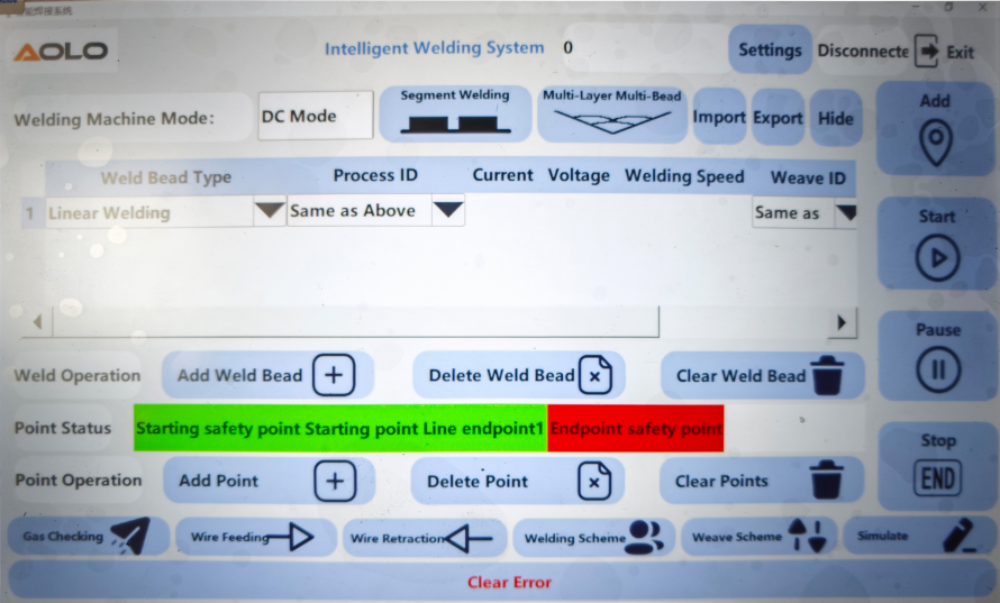

Compared with traditional robots, collaborative robots have a simpler control software interface. As can be seen from the above figure, there are three main settings in the operation interface.

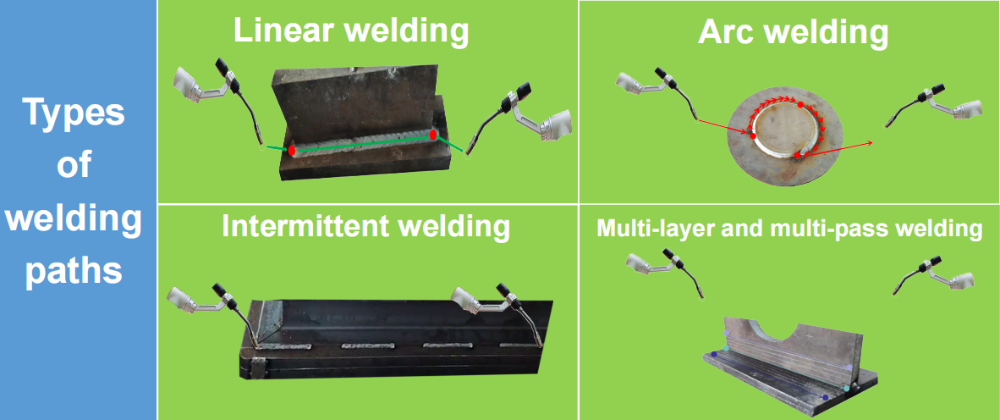

1、The selection of welding path.
2、The setting of welding process and parameters.
3、Welding gun position setting.
The interface has wire feeding settings and gas detection.
After the welding parameters and points are set, you can click the simulation button on the parameter
interface to simulate the running path of the welding gun

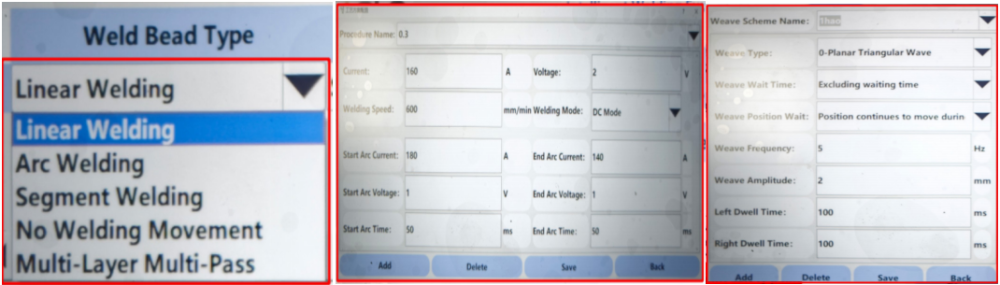

The three pictures above are the selection of weld path, the setting of welding parameters, and the setting of welding gun swing mode.These three settings determine the quality of the weld, how well the wire melts, how wide the weld is, and how strong the weld is.

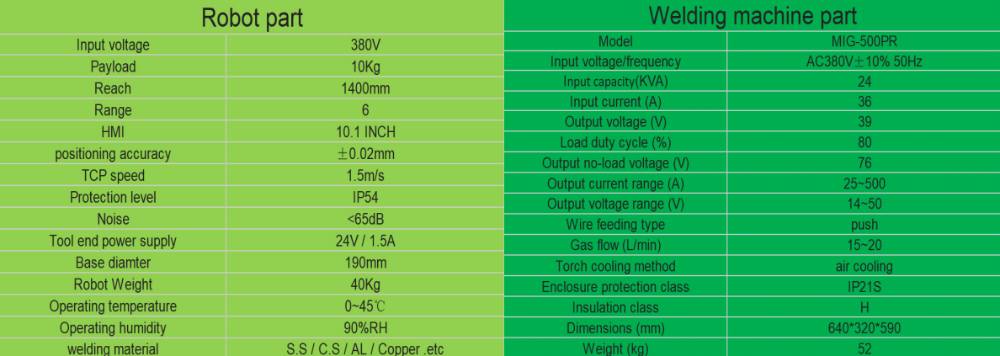

Parameters
Industry application characteristics
1. The thickness of workpiece is more than 3mm.
2. It can batch weld fixed position workpieces, Flexible and fast welding in unfixed positions
3. Horizontal welding, vertical welding, overhead welding, side welding are all possible.
4. No restrictions on working space, If the working space is small, you can choose a magnetic robot.
5. Water-cooled welding guns make welding work last longer.
6. Structural welding uses pulse mode to improve workpiece strength.
7. The types of weldable workpieces include beams, frames, discs, columns, etc.
8. Welding types include fillet weld, fillet weld, splice weld, segment weld, etc.

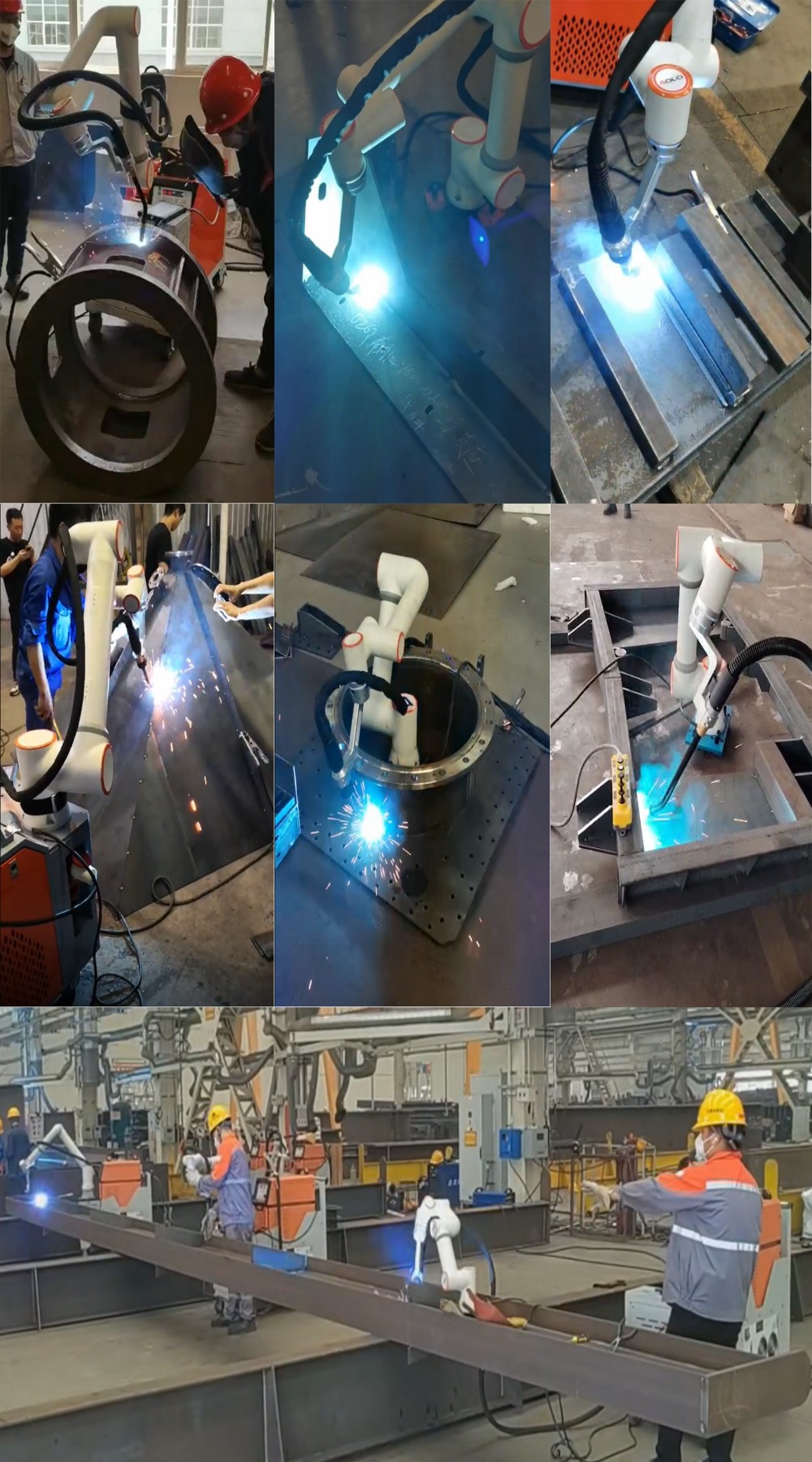

Application Cases
Q&A
1. How to choose the configuration of collaborative robots?
According to your own welding needs, there are the following points.

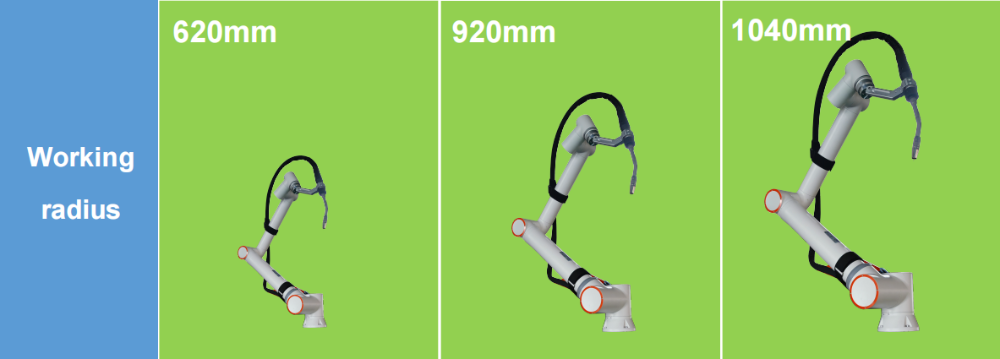

1 .The length of the robot arm is determined according to the size and length of the
welding workpiece.
2 .The welding site space determines whether to use magnetic type or fixed type.
2. What materials need to be prepared before welding?
1 .Gas Cylinders
2 .Welding wire
3 .Pure water
3. How to install and use?
We provide users with instructions and operation demonstration videos. If you have any
other questions, please contact sales or after-sales service in time.
4. How long is the warranty?
The warranty is one year. If there is any fault, please contact us at any time and we will
assist you in determining and solving the fault as soon as possible.
5. What are the commonly used consumables?
The same as traditional welding guns, the conductive tip and nozzle will be worn out
during heavy use. These two types need to be kept in stock. We will have a small amount
of configuration in package.
6. What is the shipping packaging of collaborative robots?
Single wooden case
MEAS:1240*800*1460MM
G.W:250KG
7. How long is the production cycle?
Determined by quantity, normally in stock, small quantity can be completed within 3 days
