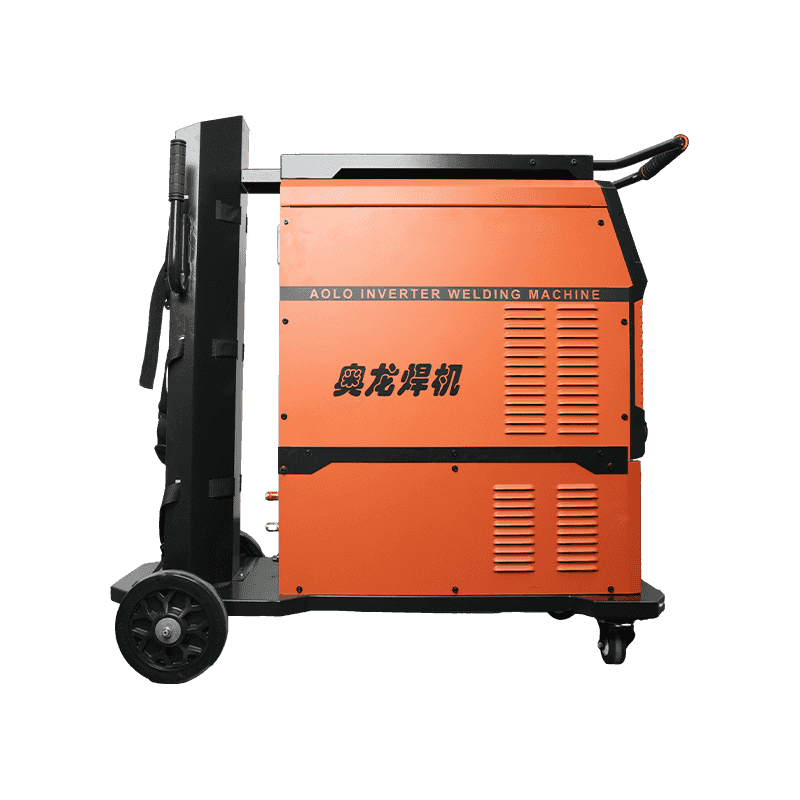

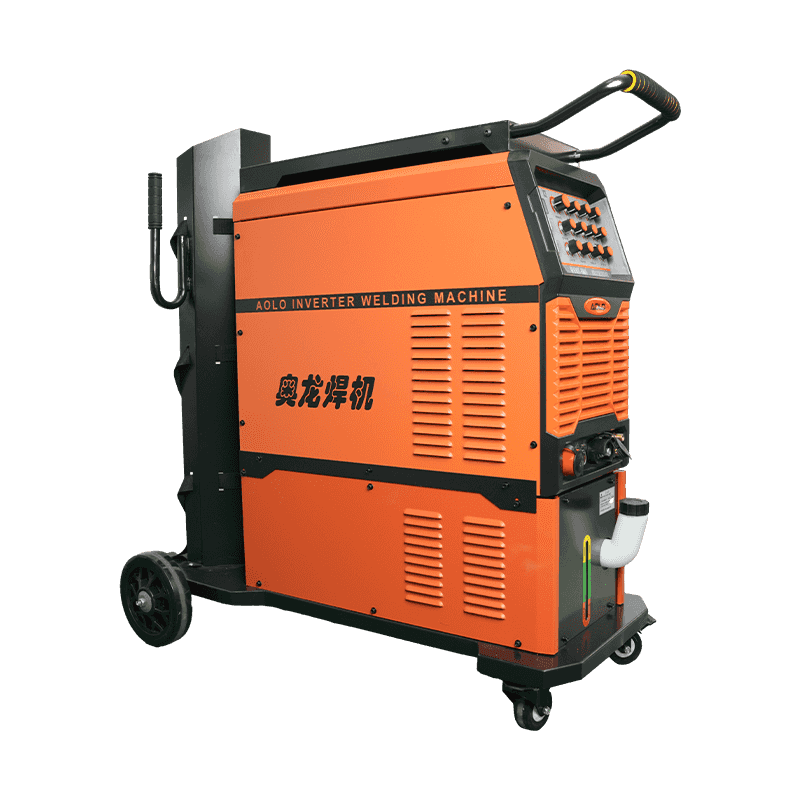

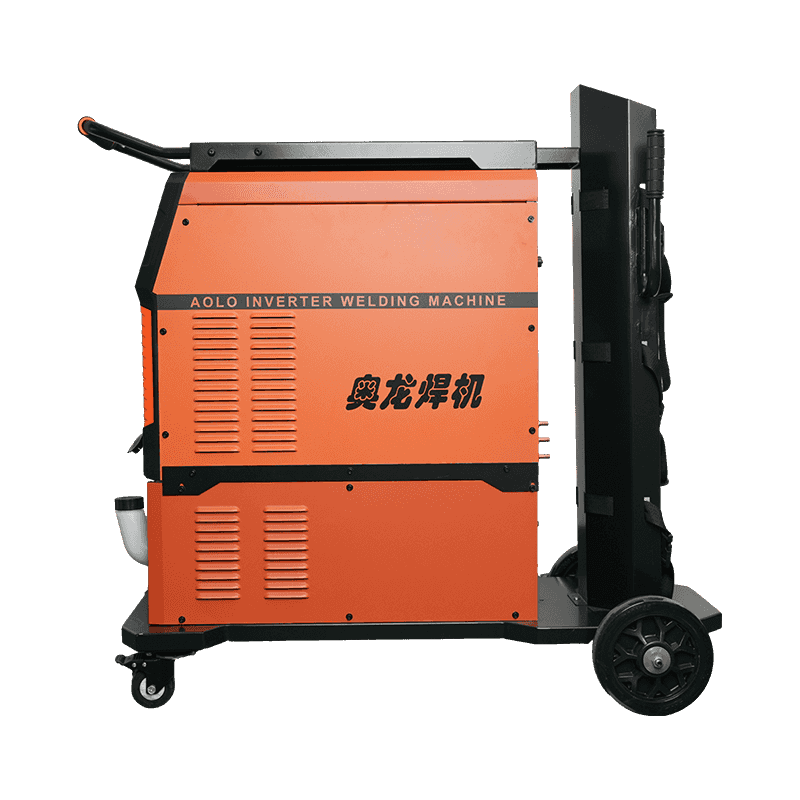

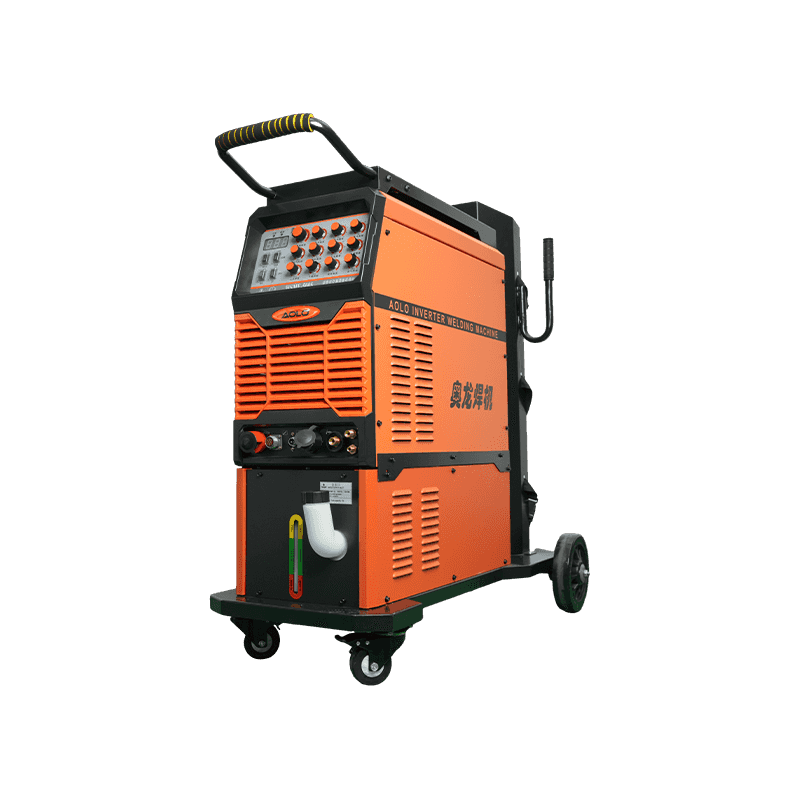

WSME-315S/WSME-500S AC/DC Pulse 380V 315A IGBT Inverter TIG(GTAW)

1、Heavy-duty industrial argon arc welding machine with rich parameter adjustment settings.. 2、Can be used with water tank and water-cooled gun, long-term welding will not damage the gun, and the welding performance is good. 3、The pulse frequency and AC frequency are adjustable to increase the welding speed and improve the arc shape. 4、Compared with traditional digital adjustment, analog switch adjustment parameters are more refined and intuitive, and the control panel design is simple. 5、Suitable for welding projects with high welding process requirements, such as pipeline welding, high-precision structural frame welding, etc. 6、The whole machine circuit has multiple circuit protections, and the gas control unit is safe and reliable. 7、The equipment is simple to install and can be used directly by welders with basic welding experience, saving training time.

Get A Quote

PREV：No previous article NEXT：WSM-400S/WSM-500S Pulse TIG 380V 400A IGBT Inverter TIG(GTAW)

Parameter
Accessories
Contact Us

Model	WSME-315S
Input voltage (V)	AC380V±10% 50Hz
Input capacity (KVA)	12
Input current (A)	12
Welding current range (A)	4-315
Pulse frequency (%)	60
Pulse width adjustment range (%)	0.2-5
Current rise time (S)	0.1-10
Current fall time (S)	0.1-10
Full load efficiency (%)	92
Power factor (η)	0.95
Dimensions (mm)	640320590
Weight (kg)	38

Model	WSME-500S
Input voltage (V)	AC380V±10% 50Hz
Input capacity (KVA)	17
Input current (A)	26
Welding current range (A)	5-500
Pulse frequency (%)	60
Pulse width adjustment range (%)	0.2-5
Current rise time (S)	0.1-10
Current fall time (S)	0.1-10
Full load efficiency (%)	92
Power factor (η)	0.95
Dimensions (mm)	640320590
Weight (kg)	50

Accessories ：

WP-18 welding gun with 5m cable

Spare parts bag

Argon regulator

Gas hose

2.5m earth wire

300A earth clamp
