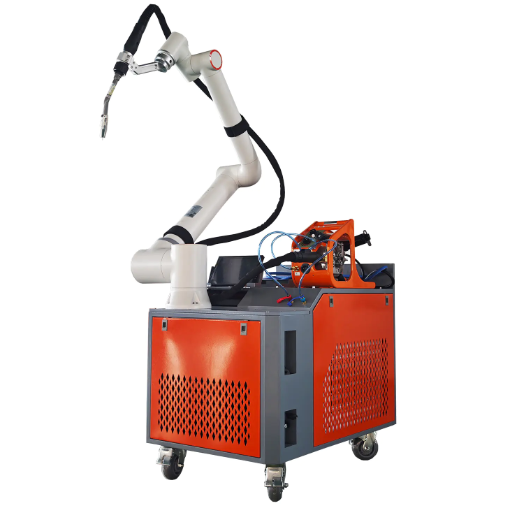

How does the sensor system of Robot Welding Machine improve welding quality?

One of the core advantages of the Robot Welding Machine is its integrated sensor system, which can monitor various parameters of the welding process in real time and optimize the welding quality through feedback control. The following are the specific roles and implementation methods of the sensor system in improving welding quality:

Weld tracking and positioning
Problem: During the welding process, the workpiece may have assembly errors or deformations, causing the weld position to deviate from the expected.
Solution:
Vision sensor: Use a camera or laser scanner to capture the weld position and shape in real time, and generate a three-dimensional image to guide the robot to adjust the path.
Arc sensor: Sense the weld offset by detecting the current change of the welding arc and dynamically adjust the welding posture.
Effect: Accurate weld tracking can ensure that the welding gun is always aligned with the target position to avoid defects such as misalignment and incomplete fusion.
Molten pool monitoring and control
Problem: The state of the molten pool directly affects the quality of the weld. For example, overheating may cause burn-through, while insufficient temperature will cause incomplete melting.
Solution:
Infrared sensor: Monitor the temperature distribution of the molten pool and adjust the welding current and speed in time to maintain a stable molten pool state.
Optical sensor: Captures changes in the color and brightness of the molten pool and identifies potential defects (such as pores or cracks).
Effect: Real-time monitoring of the molten pool behavior helps optimize welding parameters, reduce defect rates and improve weld consistency.
Material adaptability and process optimization
Problem: Different materials (such as steel, aluminum alloy or stainless steel) have different requirements for welding processes, and traditional methods are difficult to switch quickly.
Solution:
Material recognition sensor: Automatically determine the material type by analyzing the surface characteristics of the workpiece (such as reflectivity or conductivity).
Intelligent control system: Automatically adjust welding parameters (such as current, voltage, wire feed speed and gas flow) based on sensor data.
Effect: Automated parameter adjustment reduces manual intervention and improves the flexibility and efficiency of multi-material welding.
Environmental interference compensation

Problem: The welding process may be affected by external factors (such as vibration, temperature changes or electromagnetic interference), resulting in reduced welding quality.
Solution:
Acceleration sensor: Detects the vibration of the robot body and compensates through active control algorithms.
Temperature sensor: monitors ambient temperature and adjusts welding power to offset thermal expansion effects.
Effect: ensures the stability of the welding process by compensating for external interference in real time.
Defect detection and early warning
Problem: Finding defects after welding will increase rework costs and reduce production efficiency.
Solution:
Ultrasonic sensor: detects whether there are pores, slag inclusions or cracks inside the weld during welding.
AI image recognition: uses machine learning algorithms to analyze the appearance of the weld and quickly identify abnormal features.
Effect: Real-time defect detection can detect problems in advance and avoid subsequent processing waste.
Data recording and quality traceability
Problem: How to ensure the traceability of the quality of each weld in large-scale production?
Solution:
Data acquisition system: records all parameters in the welding process (such as current, voltage, speed and time) and binds them to the product number.
Cloud platform storage: upload data to the cloud for subsequent analysis and management.
Effect: Data recording not only helps to trace the source of quality problems, but also provides a basis for continuous improvement.
Safety monitoring in human-machine collaboration
Problem: In human-machine collaboration scenarios, how to ensure the safety of operators without affecting welding quality?
Solution:
Torque sensor: Detects the contact force between the robot and the workpiece to prevent excessive squeezing or collision.
Proximity sensor: Monitors the position of the operator and pauses the welding action when necessary to protect safety.
Effect: The safety monitoring function can ensure the safety of personnel while maintaining the continuity of the welding process.
Future development trend: Intelligent and adaptive welding
Trend: With the development of artificial intelligence and big data technology, sensor systems will become more intelligent. For example:
Adaptive welding: By analyzing sensor data in real time, robots can autonomously adjust welding strategies to cope with complex working conditions.
Predictive maintenance: Based on historical data and sensor signals, predict equipment failures and take measures in advance.
Significance: These new technologies will further improve welding quality and production efficiency, and promote the development of robotic welding to a higher level.

Sensor systems are the key to improving welding quality for robotic welding machines. Through precise weld tracking, molten pool monitoring, defect detection, and environmental compensation, sensors can significantly improve the consistency and reliability of welds. In addition, combined with intelligent technology and big data analysis, future robot welding machines will have stronger adaptability and higher levels of automation, thus meeting the needs of efficient, flexible and high-quality production in the Industrial 4.0 era.
